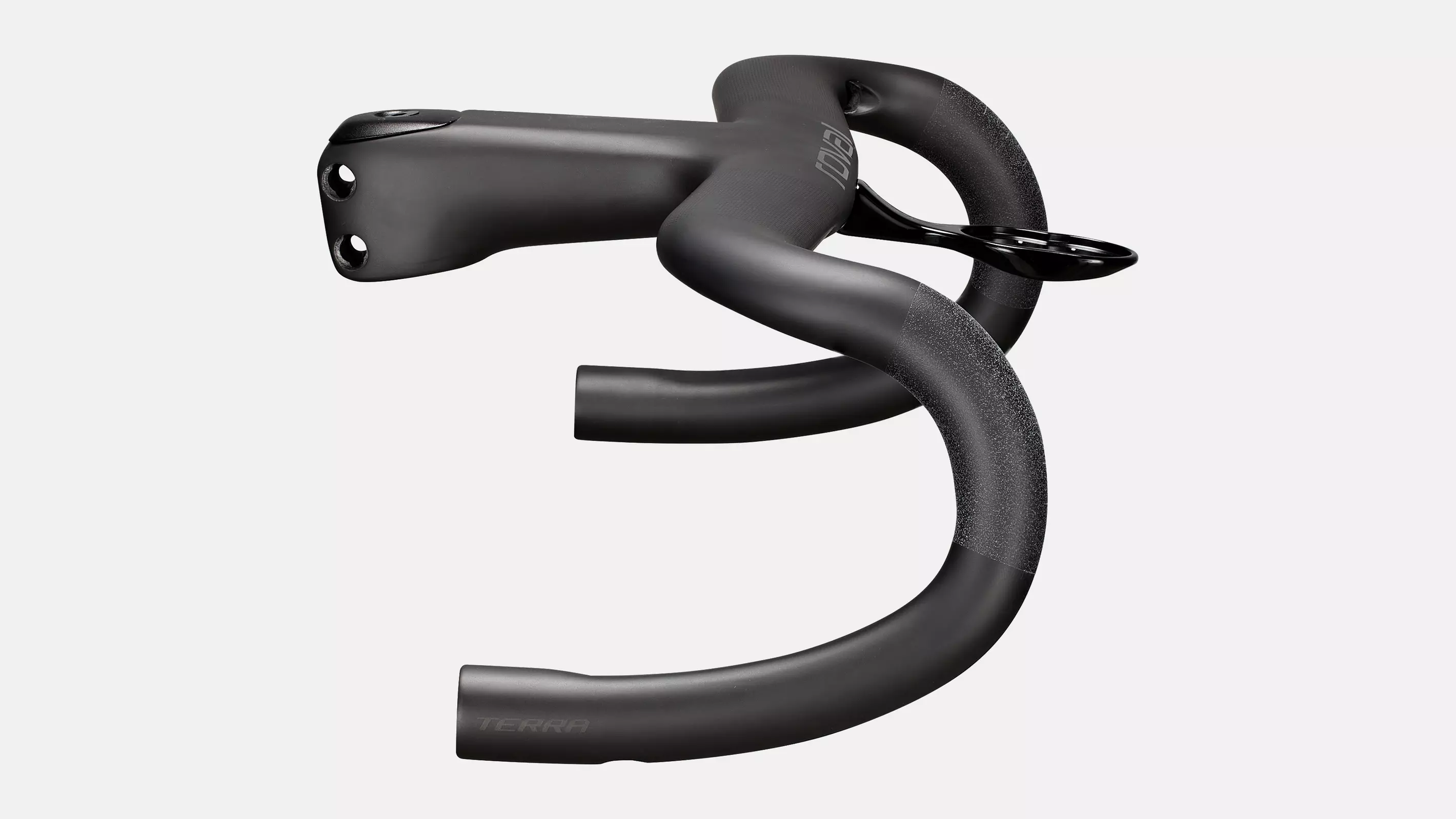

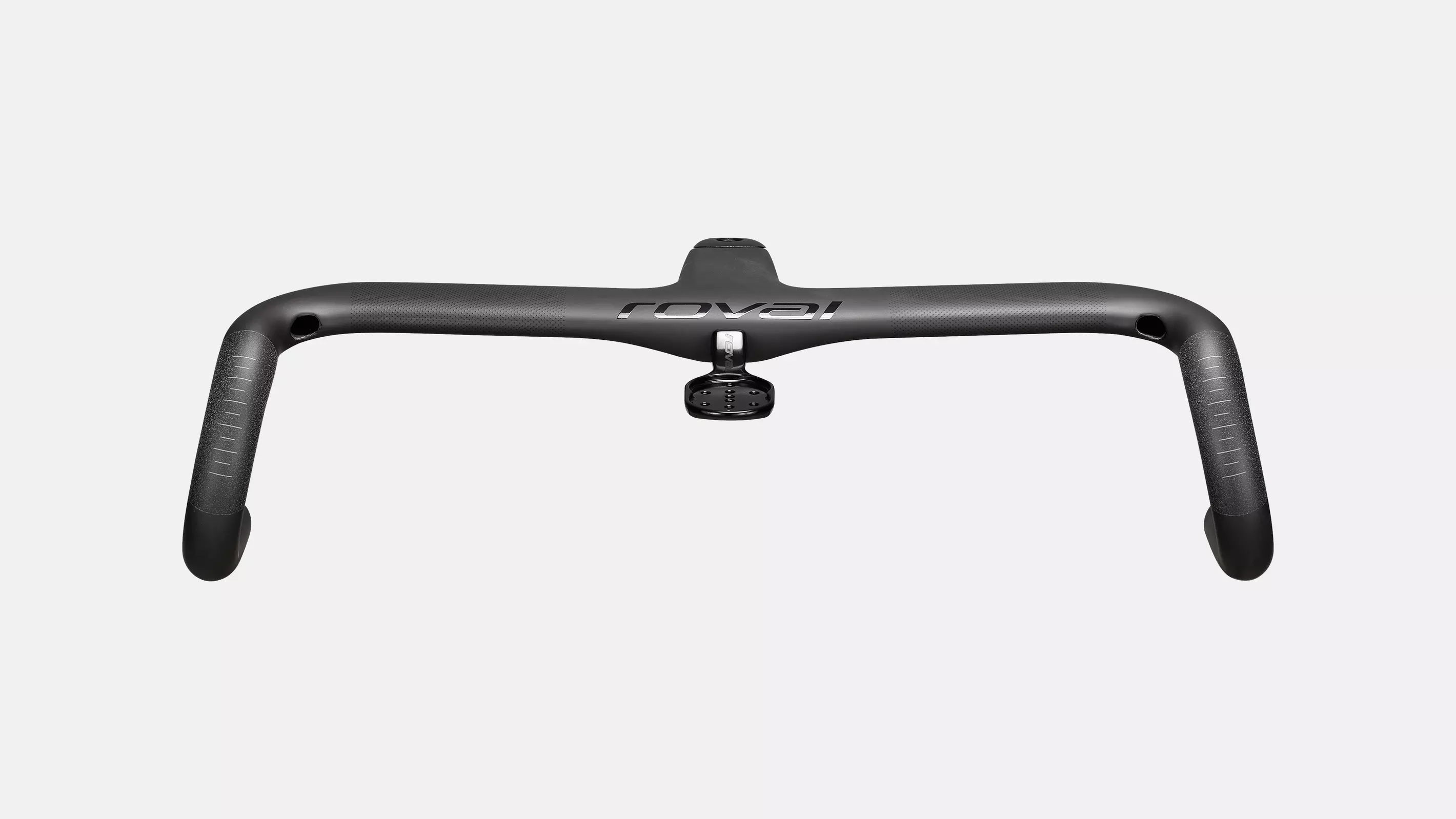

ROVAL TERRA COCKPIT

The fastest and most comfortable gravel racing cockpit from Roval. Designed to meet the demands of modern gravel riding, the Terra Cockpit combines exceptional compliance, aerodynamic efficiency, and lightweight performance in a fully integrated one-piece carbon cockpit. Refined using more than 100,000 Body Geometry and RETÜL fit data points, it delivers outstanding comfort and control across rough terrain while maintaining the precision and responsiveness demanded by competitive riders.

Constructed from high-modulus carbon fibre, the Terra Cockpit provides 78% more damping than the Rapide Cockpit, reducing rider fatigue and improving comfort on long gravel adventures and race days alike. At just 298g, it is one of the lightest integrated gravel cockpits available, offering seamless integration with Specialized bikes while remaining universally compatible with most gravel and road bike platforms.

Key Features

• One-piece high-modulus carbon fibre gravel cockpit
• 78% more compliance and damping than the Rapide Cockpit
• Developed using over 100,000 Body Geometry and RETÜL fit sessions
• Lightweight design weighing just 298g (400mm x 100mm)
• Ergonomic ovalized tops improve comfort and reduce hand fatigue
• 12-degree flare enhances control and stability on rough terrain
• 5-degree backsweep creates a natural wrist position
• Optimized gravel geometry with 70mm reach and 107mm drop
• Compatible with both gravel and road bikes
• Includes Roval bolt-on computer mount, top cap, and steerer tube bolt
• Titanium stem bolts for lightweight durability

Specifications

• Material: High-Modulus Carbon Fibre
• Weight: 298g (400mm x 100mm)
• Use: Gravel and Road Bikes
• Weight Limit: 125kg (275lbs)
• Warranty: Limited Lifetime Warranty
• Clip-On Compatible: No
• Compliance: 78% more damping than Rapide Cockpit

Handlebar Dimensions

• Hood Widths (Centre-to-Centre): 380mm, 400mm, 420mm
• Drop Widths (Centre-to-Centre): 423mm, 443mm, 463mm
• Flare: 12°
• Reach: 70mm
• Drop: 107mm
• Backsweep: 5°

Stem Specifications

• Lengths: 60mm–120mm (depending on bar width)
• Angle: -6°
• Steerer Clamp Height: 40mm
• Steerer Diameter: 1-1/8"
• Stem Bolts: Titanium
• Torque Specification: 5.0 Nm

Included Accessories

• Roval bolt-on computer mount (S219900058)
• Top cap
• Steerer tube bolt

Optional Accessories

• Tarmac SL7 Headset Transition Spacer (S232500001)
• Tarmac SL8 Transition Spacer (S222500010)

Why Choose the Roval Terra Cockpit?

The Roval Terra Cockpit is engineered for riders who want the ultimate combination of speed, comfort, and control. Its advanced carbon construction, gravel-specific ergonomics, and industry-leading compliance reduce fatigue while maintaining razor-sharp handling. Whether you're racing gravel events, exploring remote backroads, or tackling demanding mixed-surface adventures throughout New Zealand, the Terra Cockpit delivers premium performance where it matters most.
