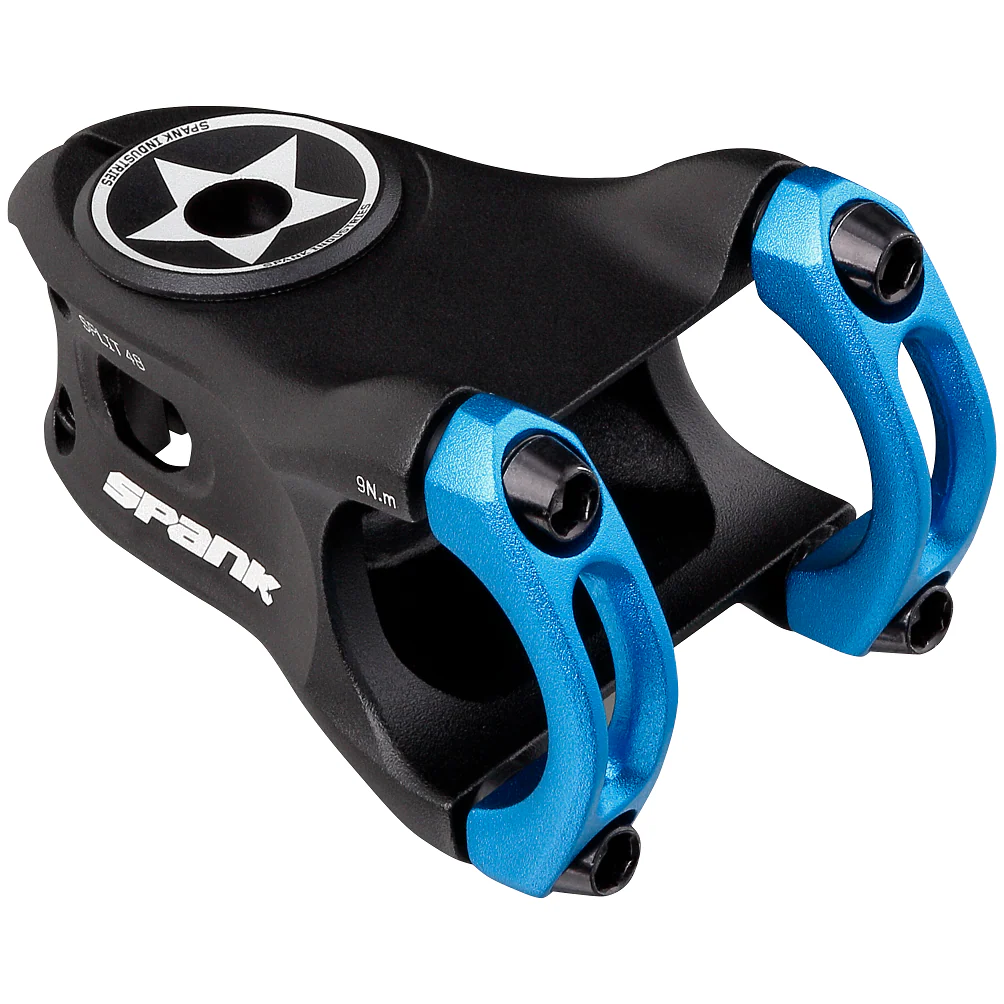

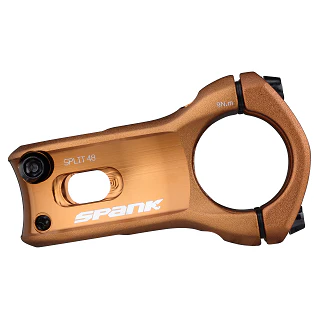

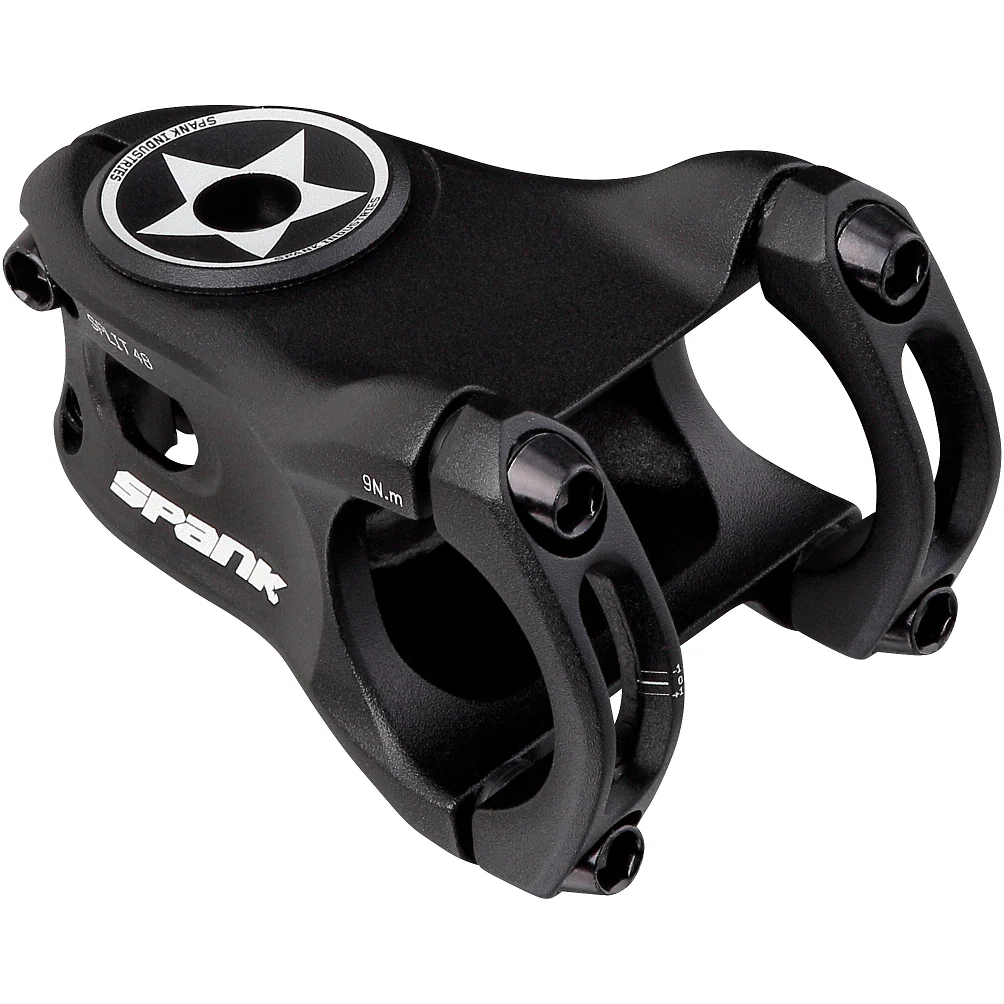

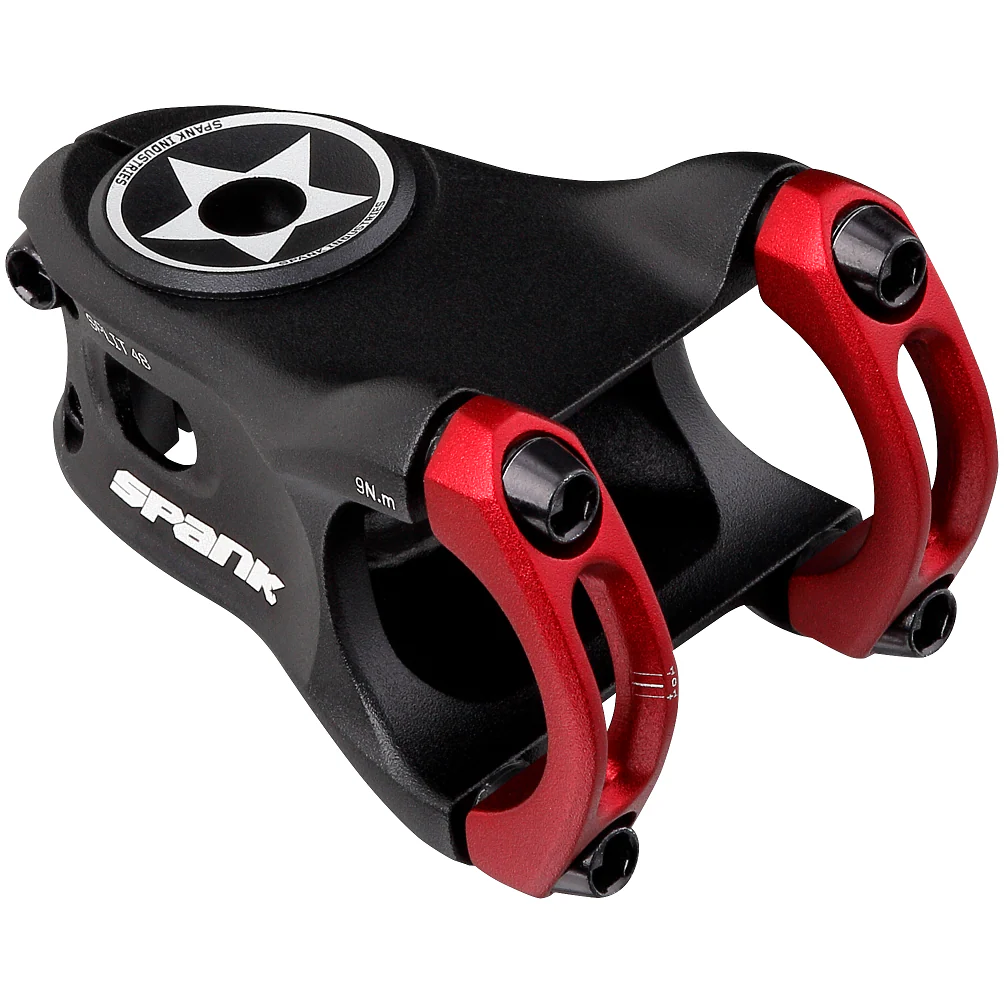

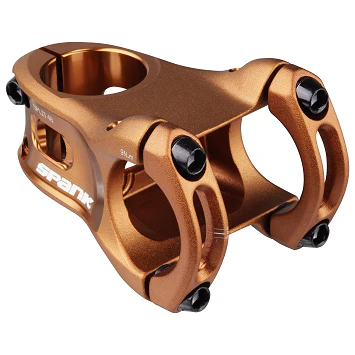

SPANK - SPLIT STEM



• Highly weight optimized single crown stem, ideal for Enduro applications with 31.8mm handlebars
• Human Factor Design features micro increment size options, tuned to fit any rider size and style
• Human Factor cockpit setup index facilitates tuning of upsweep and backsweep
• Ultra-short stack height and true zero degree rise
• Chamfered barclamp to reduce stress risers and increase fatigue life in handlebars

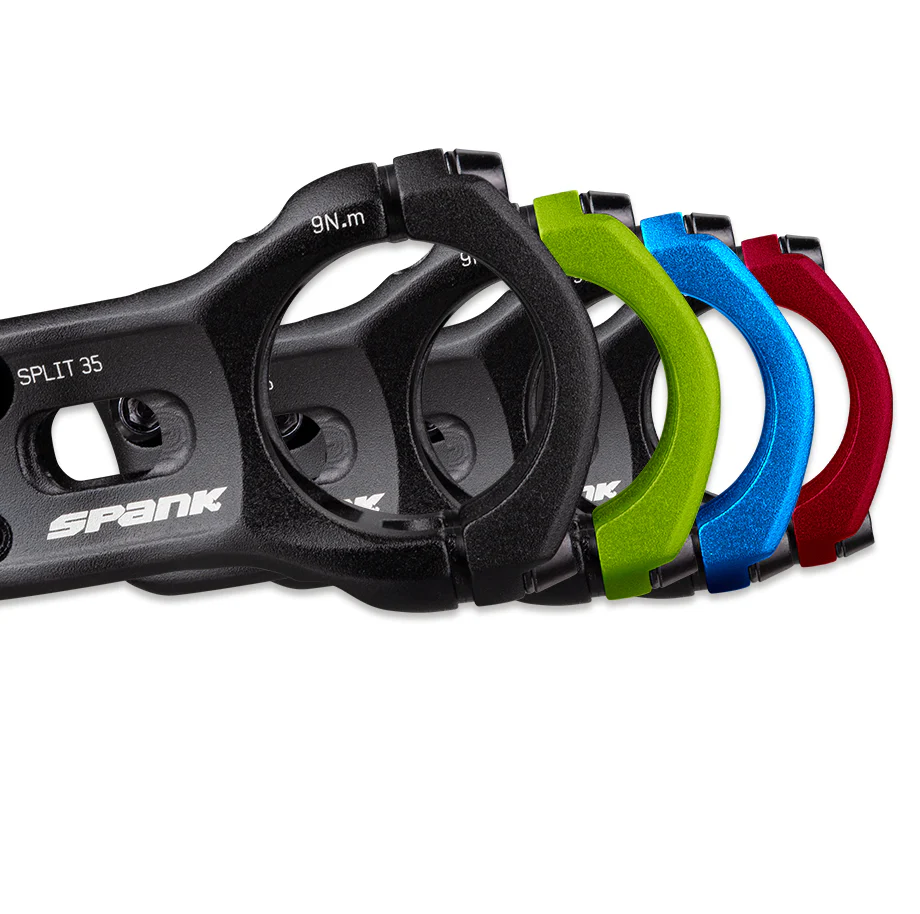

• Forged 2-piece faceplate design reduces overall weight without compromising barclamp security or stiffness
• Shotpeen-anodized surface increases strength, durability, and fatigue life



KEY TECHNOLOGIES	Human Factor Design, MGR Alloy, Chamfered bar clamp, Custom Top-Cap included
MATERIAL	6-Series Alloy, 3D forged CNC optimized body, 2D forged faceplate
LENGTH (mm)	33 / 38/ 43 / 48
RISE (°)	0
DIAMETER (mm)	31,8
STACK HEIGHT (mm)	34
WEIGHT (g)	±133 (33mm) / ±138 (38mm) ±140 (43mm) ±143 (48mm)
FINISH	Shotpeen anodized
