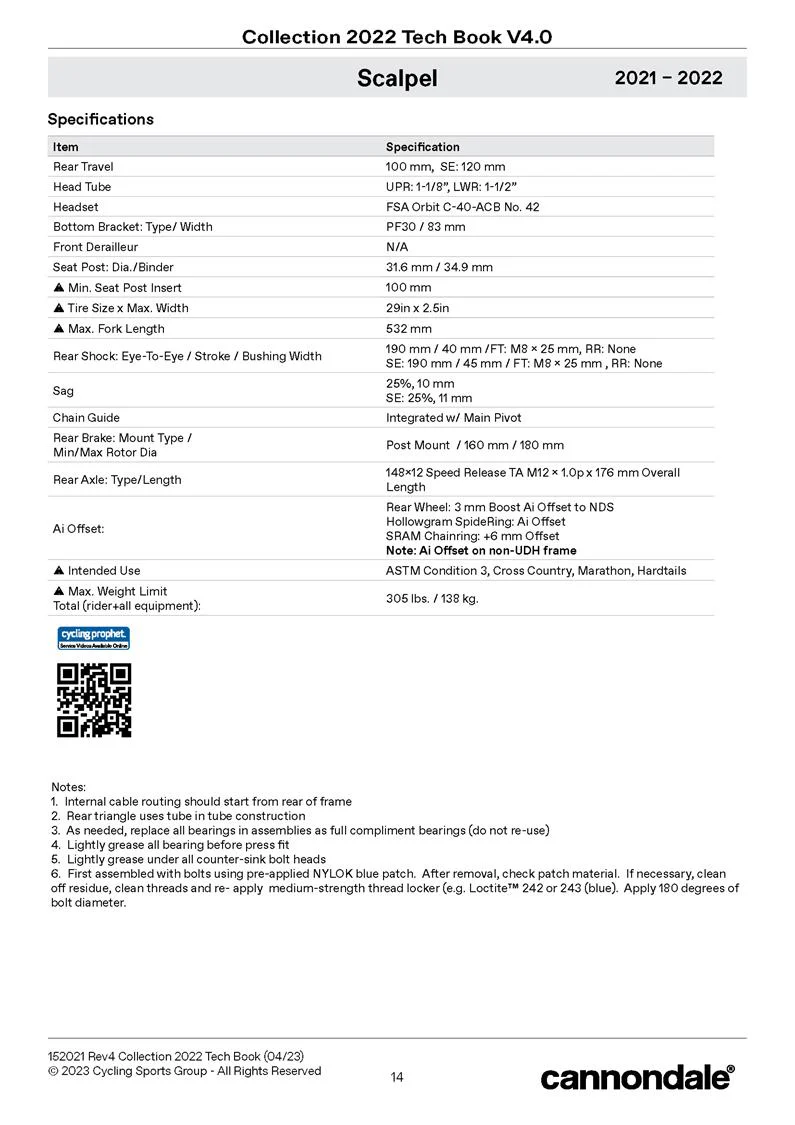

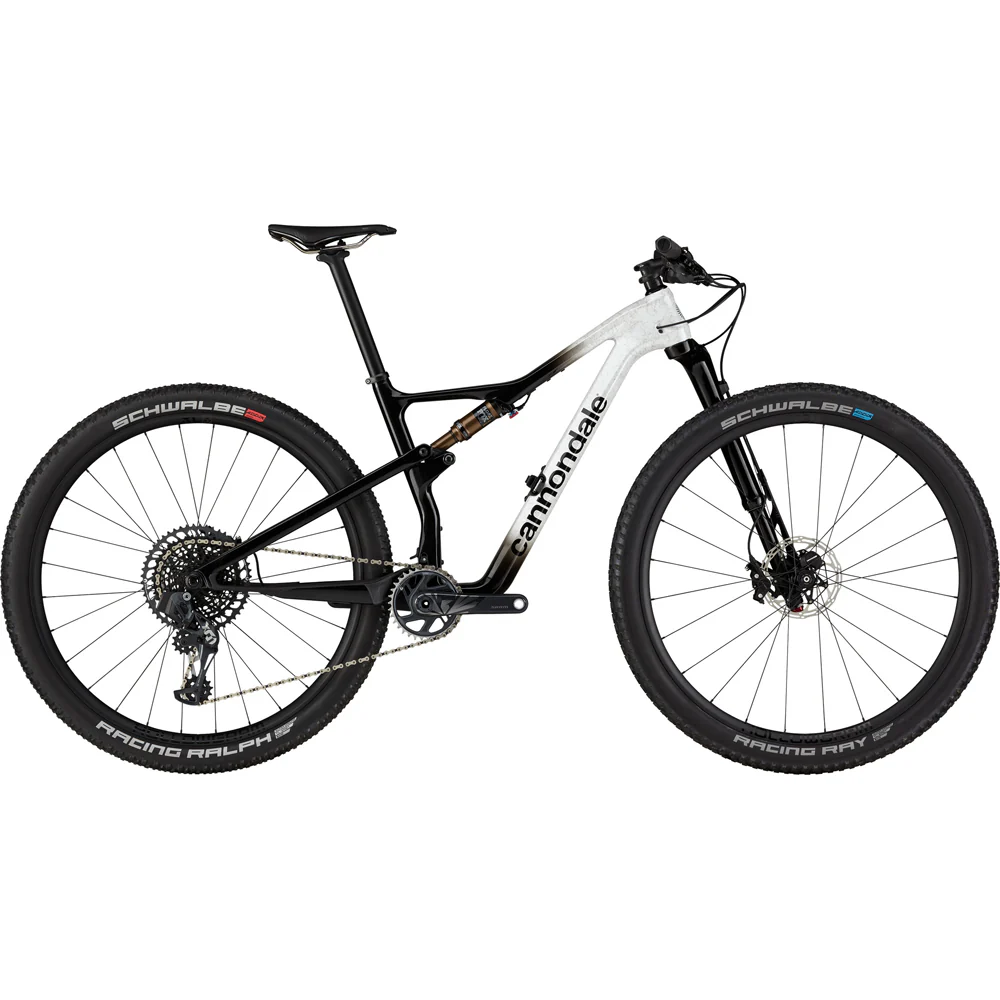

Scalpel Spares - 2021 - 2024

• Rear Travel - 100mm, SE: 120mm
• Head Tube - UPR: 1-1/8”, LWR: 1-1/2”
• Headset - FSA Orbit C-40-ACB No. 42
• Bottom Bracket: Type / Width - PF30 / 83 mm
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 100 mm
• Tire Size x Max. Width - 29in x 2.5in
• Max. Fork Length - 532mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 190 mm / 40 mm /FT: M8 x 25 mm, RR: None, SE: 190 mm / 45 mm / FT: M8 x 25 mm , RR: None
• Sag - 25%, 10 mm, SE: 25%, 11 mm
• Chain Guide - Integrated w/ Main Pivot
• Rear Brake: Mount Type / Min/Max Rotor Dia - Post Mount / 160 mm / 180 mm
• Axles: Type/Length - 148x12 Speed Release TA M12 x 1.0p x 176 mm Overall Length
• Axles: Type/Length - Rear Wheel: 3 mm Boost Ai Offset to NDS, Hollowgram SpideRing: Ai Offset, SRAM Chainring: +6 mm Offset. Note: Ai Offset on non-UDH frame
• Max. Weight Limit: Total - 138kg
