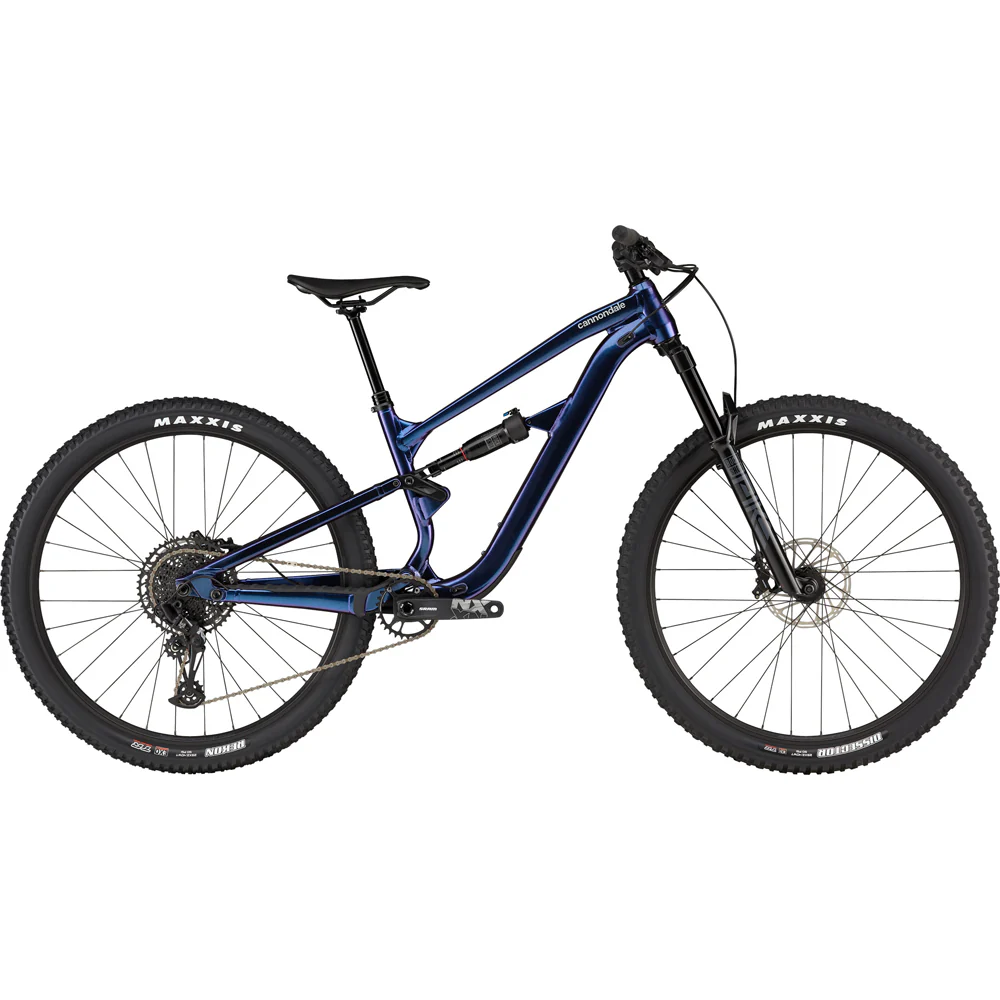

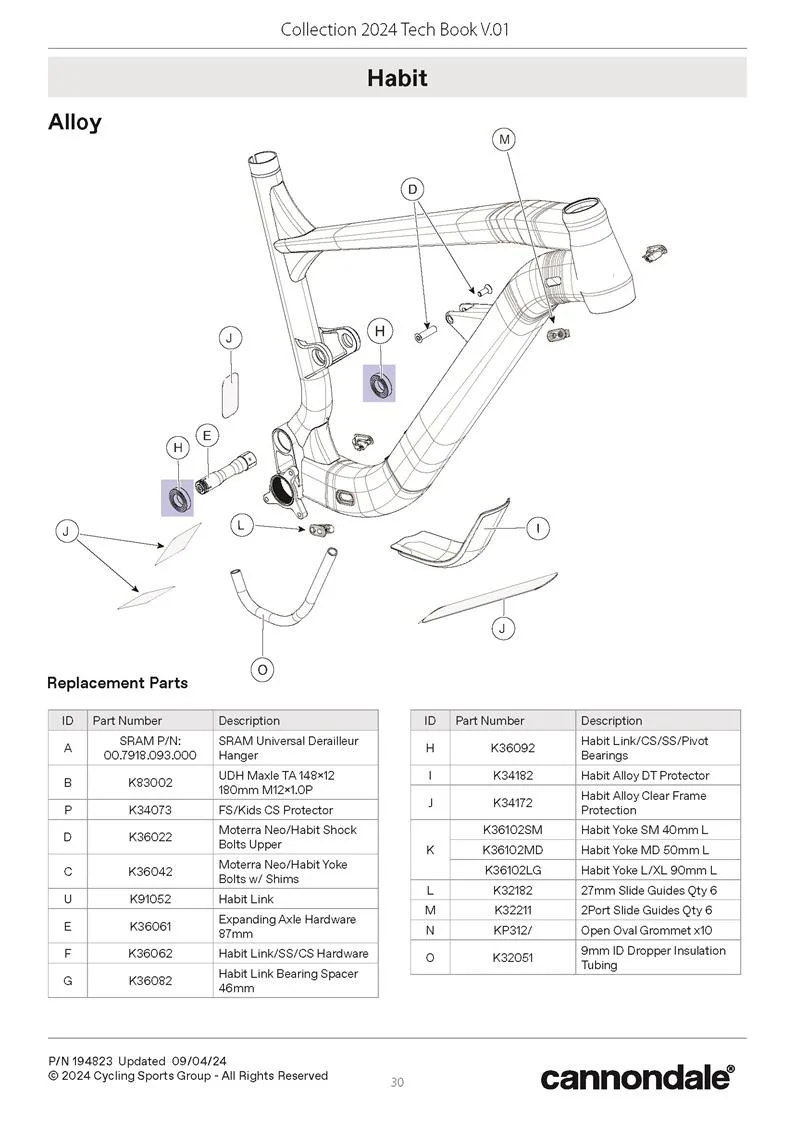

Habit Alloy Spares - 2023+

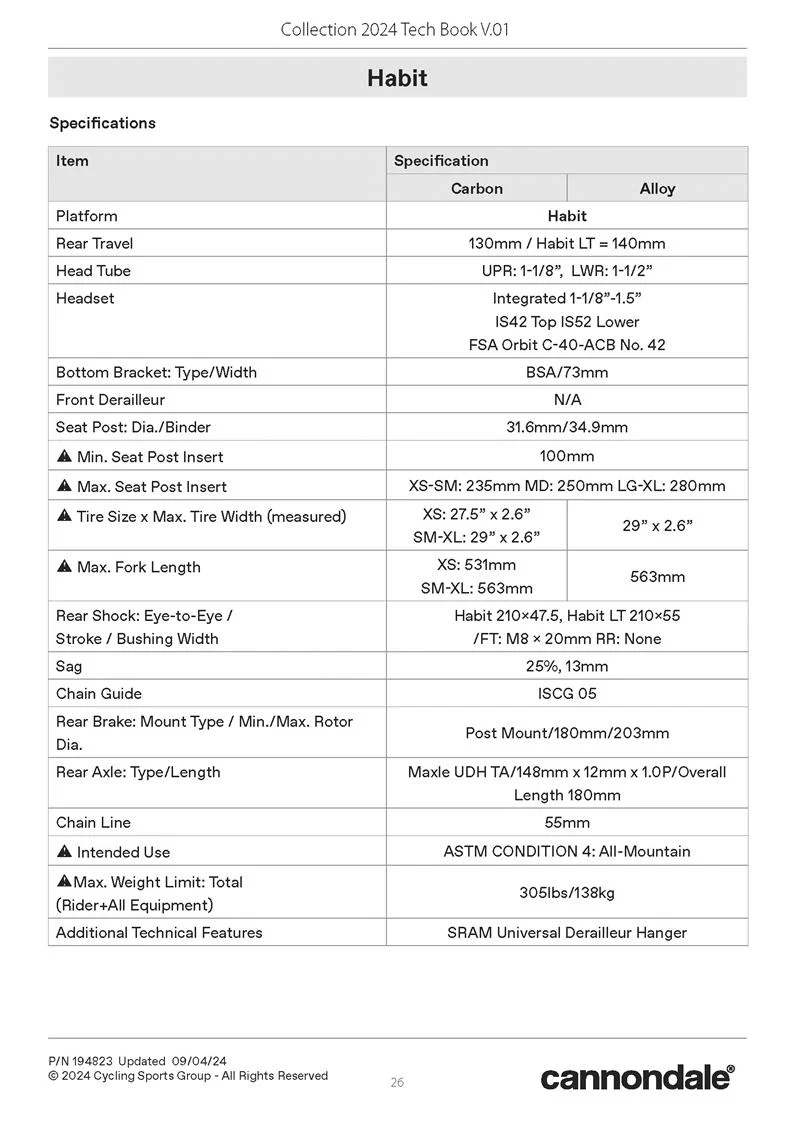

• Rear Travel - 130mm / Habit LT = 140mm
• Head Tube - UPR: 1 -1/8 in, LWR: 1-1/2 in
• Headset - Integrated 1-1/8”-1.5”/ IS42 Top IS52 Lower/ FSA Orbit C-40-ACB No. 42
• Bottom Bracket: Type / Width - BSA/73mm
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 100 mm
• Max. Seat Post Insert -XS-SM: 235mm MD: 250mm LG-XL: 280mm
• Tire Size x Max. Width - 29” x 2.6”
• Max. Fork Length - 563mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - Habit 210x47.5, Habit LT 210x55 /FT: M8 x 20mm RR: None
• Sag - 25%, 13 mm
• Chain Guide - ISCG05
• Rear Brake Mount / Type - Post Mount/180mm/203mm
• Axles: Type/Length - Maxle UDH TA/148mm x 12mm x 1.0P/Overall Length 180mm
• Chain Line - 55mm
• Max. Weight Limit: Total - 138kg
