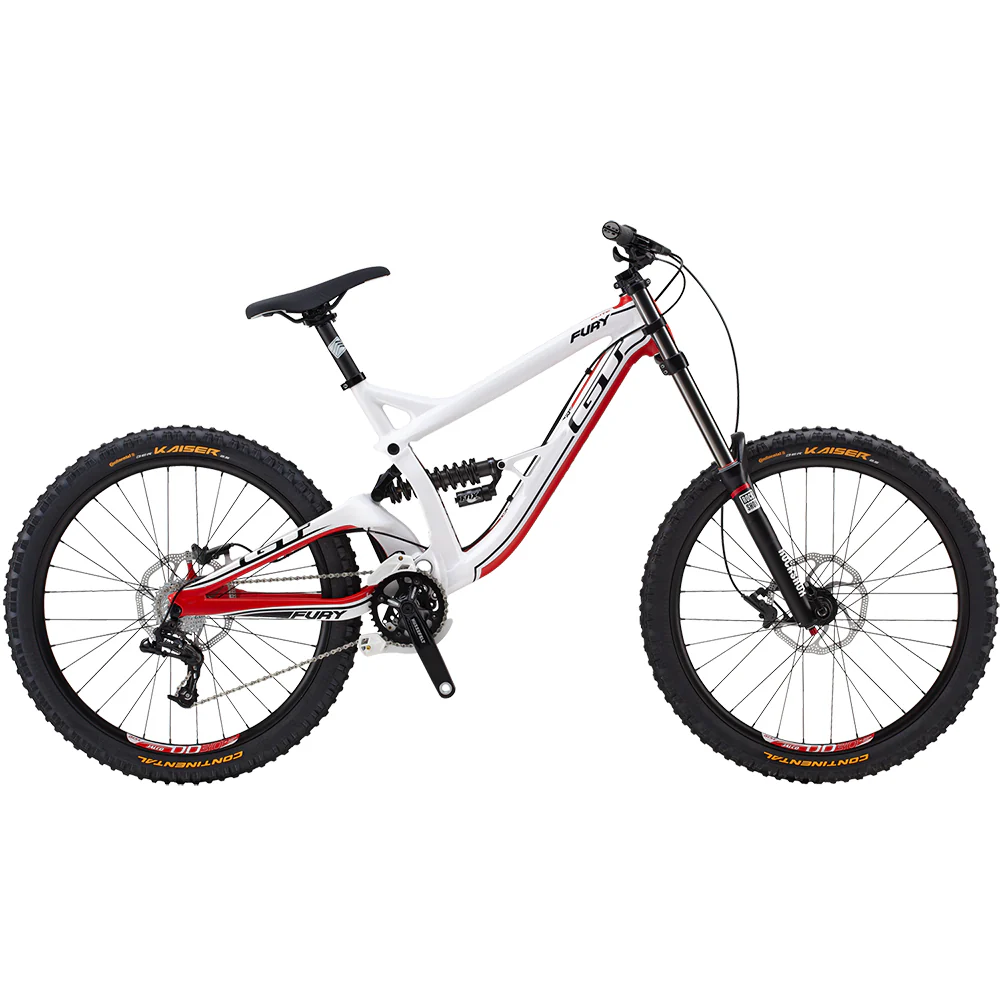

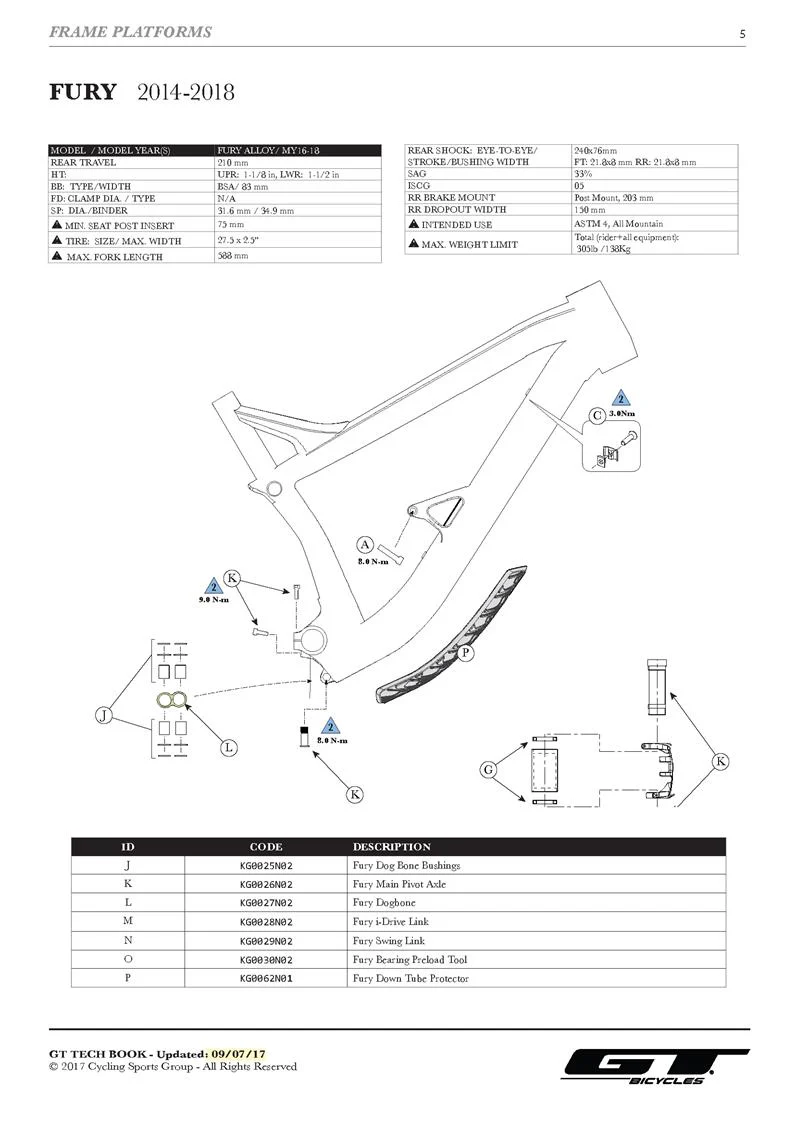

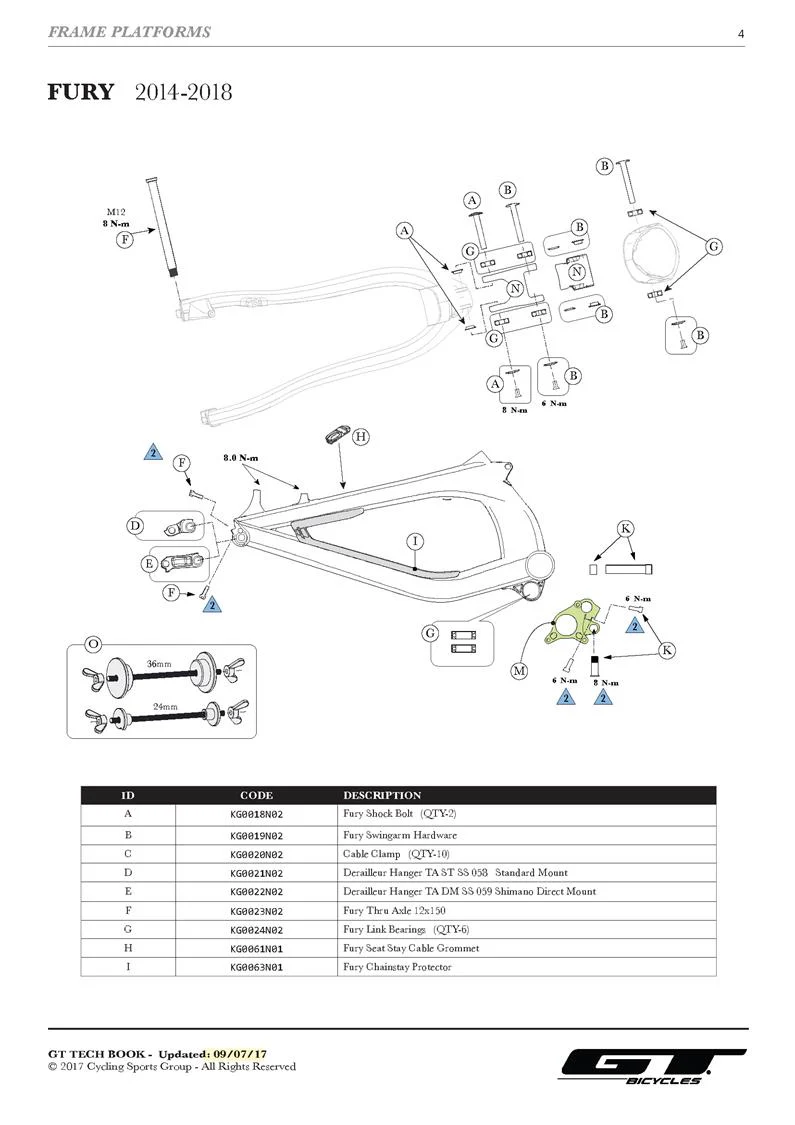

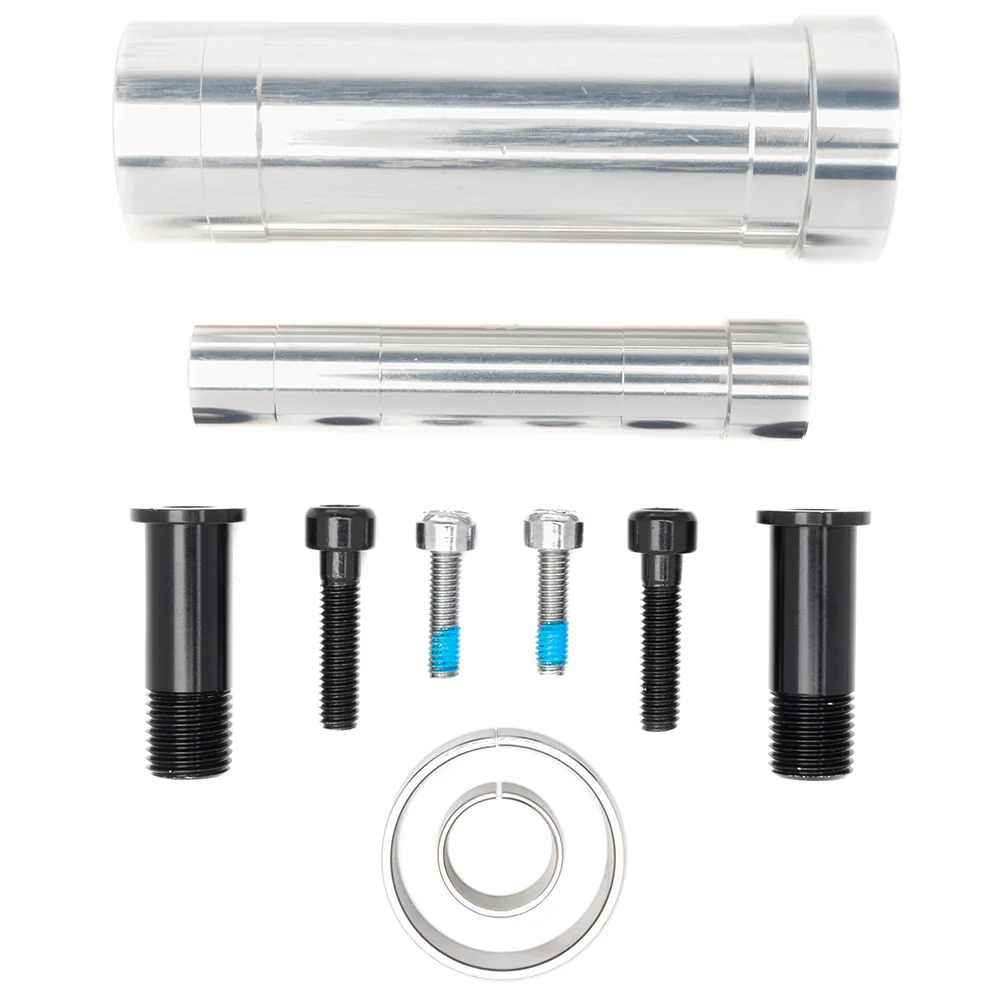

GT Fury 2014 - 2018 Frame Parts

• Rear Travel - 210mm
• Head Tube - UPR: 1-1/8, LWR 1-1/2
• Bottom Bracket: Type / Width - BSA/83mm
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 75 mm
• Tire Size x Max. Width - 27.5 x 2.5"
• Max. Fork Length - 588mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 240 mm x 76 mm, FT: 21.8 x 8 mm / RR: 21.8 x 8 mm
• Sag - 33%
• Chain Guide - ISCG05
• Rear Brake Mount / Type - Post Mount /203 mm
• Rear Dropout Width - 150mm
• Max. Weight Limit: Total - 138kg
