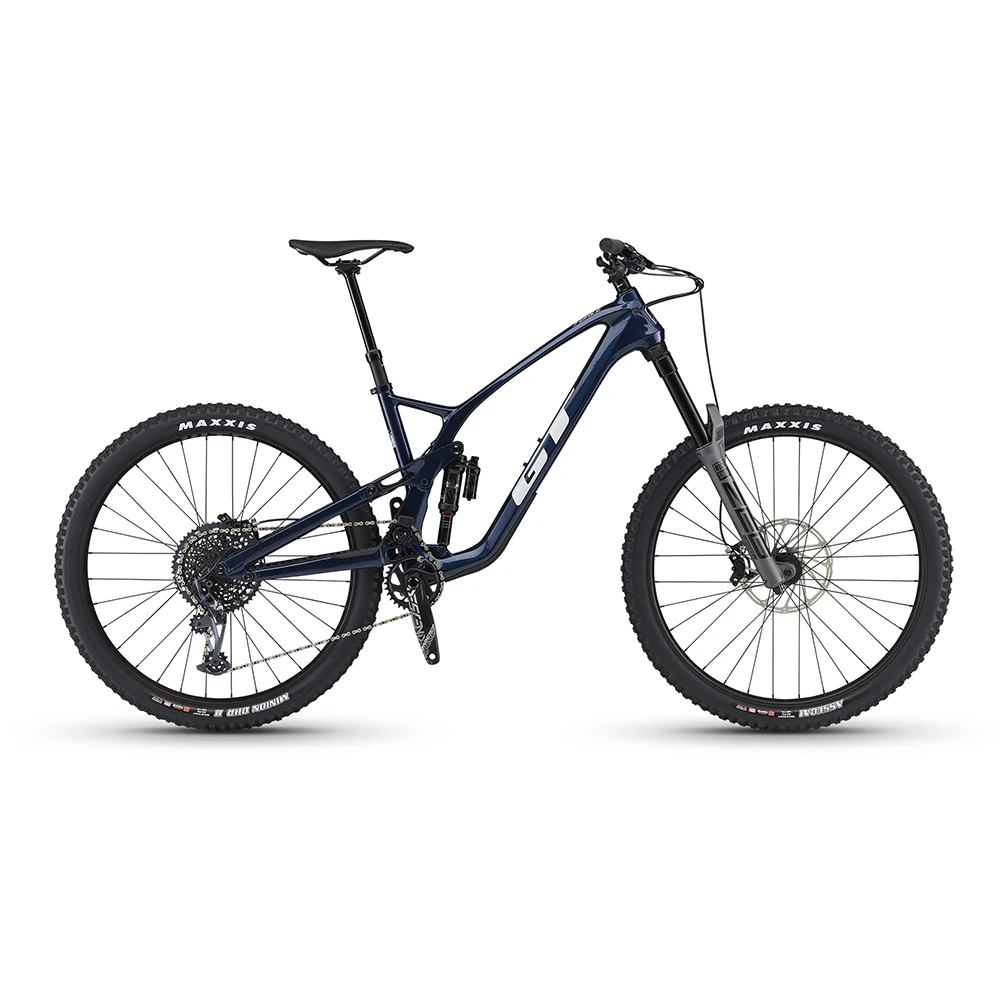

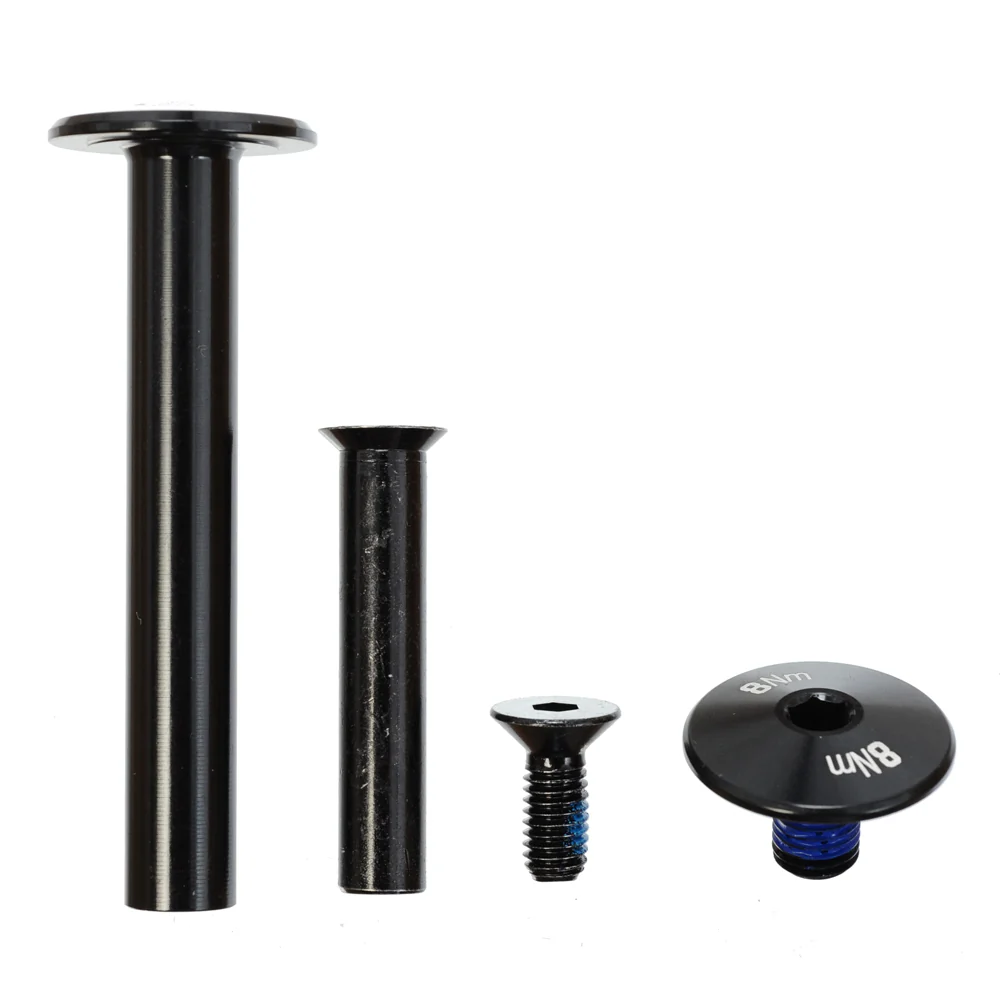

GT FORCE CARBON 29 FRAME PARTS

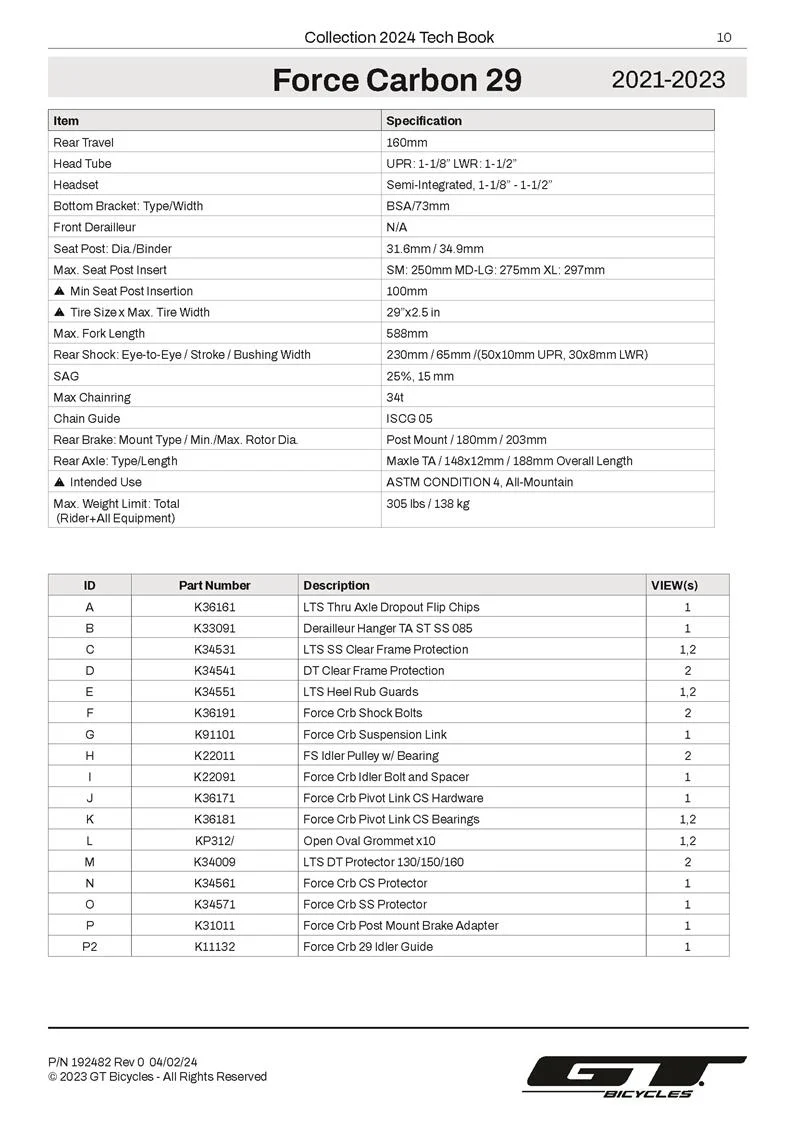

SPECIFICATIONS

• Rear Travel - 160 mm
• Head Tube - UPR: 1-1/8” LWR: 1-1/2”
• Headset - Semi-Integrated, 1-1/8” - 1-1/2”
• Bottom Bracket: Type / Width - BSA / 73mm
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - SM: 250mm MD-LG: 275mm XL: 297mm
• Tire Size x Max. Width - 29 in x 2.5 in
• Max. Fork Length - 588 mm
• Rear Shock: Eye-to-Eye / Stroke / Bushing Width - 230 mm x 65 mm / 50x10mm UPR, 30x8mm LWR
• Sag - 25%, 15 mm
• Chain Guide - ISCG 05
• Rear Brake Mount / Type - Post Mount / 180mm / 203mm
• Rear Axle: Type / Length - Maxle TA / 148x12mm / 188mm L
• Max. Weight Limit: Total - 138kg
