Cargowagen Neo Spares

• Head Tube - UPR:1-1/2”, LWR: 1-1/2”

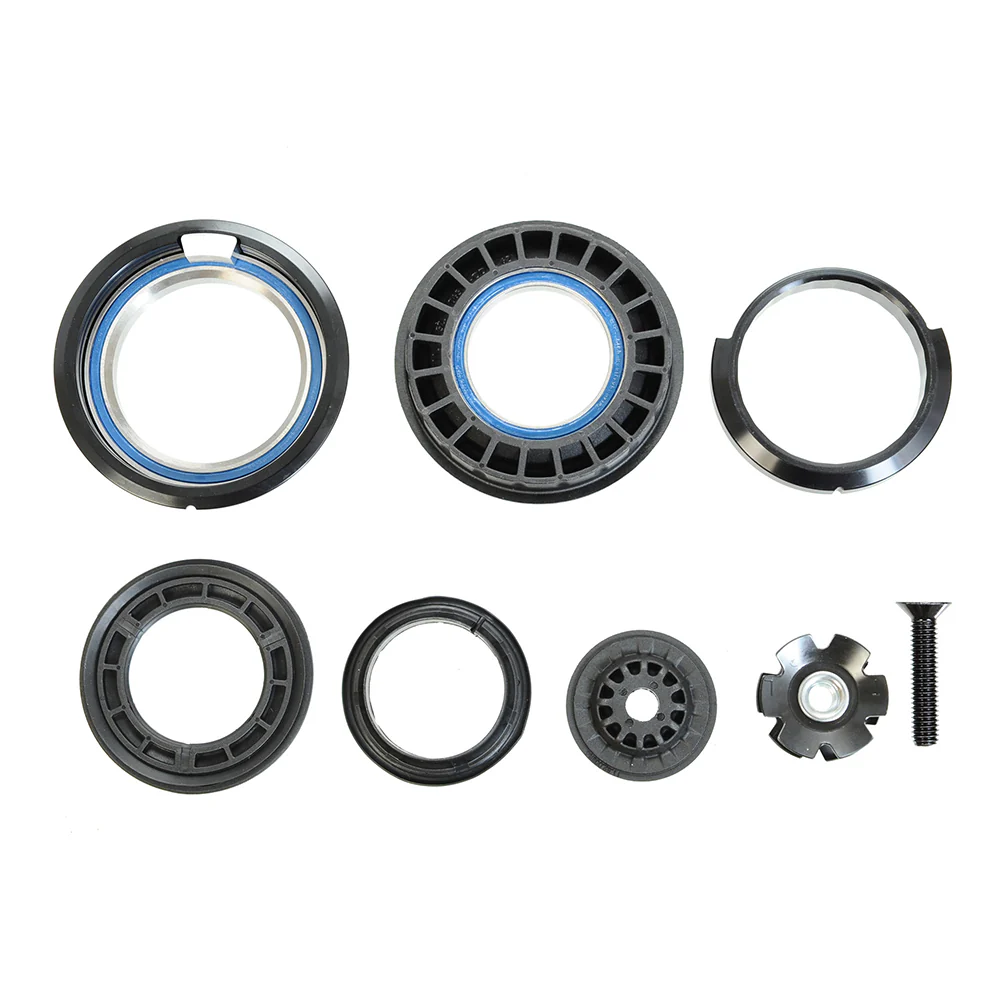

• Headset - Semi-Integrated, 1.5” Straight – ACROS Blocklock ZS56 top, ZS56 bottom
• Bottom Bracket: Type / Width - Bosch Drive Unit
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm/34.9mm
• Min. Seat Post Insert - 100 mm
• Max. Frame Seat post Insert Depth - 290 mm
• Specified Tire - Schwalbe Pick-Up Perf, Super Defense, Twinskin, 60-406 B/B+Rt Hs609 Addix E 2x67epi 36b
• Tire Size x Max. Width - Front: 20” x 2.6” (measured) Rear: Derailleur 20” x 2.15” (measured), IGH 20” x 2.35” (measured)
• Max. Fork Length - 404.8mm
• Brakes: Mount Type / Min./Max. Rotor Dia.-  RR: Post Mount/203mm/203mm
• Max. Front Rack Weight Limit - 15kg
• Max. Rear Rack Weight Limit - 80kg
• Brakes: Mount Type/Min/Max Rotor Diameter - Post Mount / 180 mm/203 mm
• Axles: Type/Length - RR: Maxle TA/148 x 12mm x 1.75P, 180mm Overall Length
• Total Maximum Weight Limit (Bike + Rider + Passengers+ Cargo + Accessories/ Trailer) - 200kg
• Bike Weight - 39 kg
